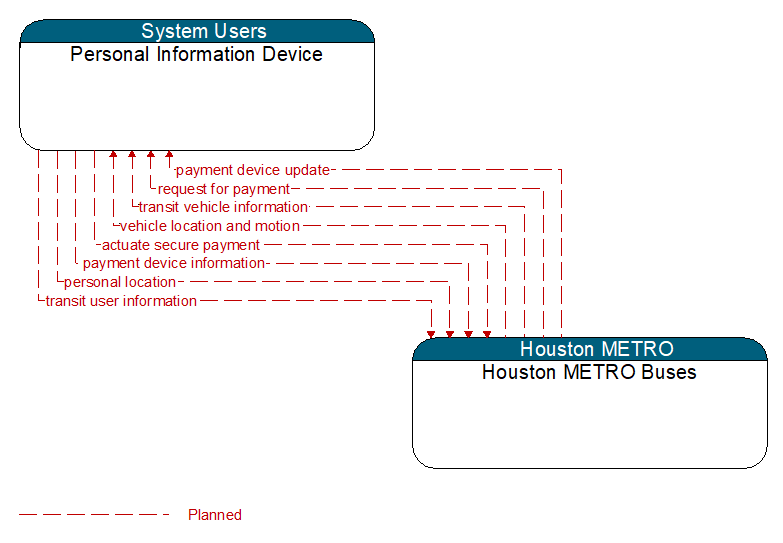

Interface: Personal Information Device - Houston METRO Buses
Information Flow Definitions
actuate secure payment (Planned)
Initiation of a payment action, ideally based on an encrypted token or biometric marker. Such a payment action could be a simple validation that the secure token allows the user access to the travel resource, or it could be the initiation of a payment transaction.
payment device information (Planned)
Traveler payment information such as card number and previous transactions.
payment device update (Planned)
Information updated concerning traveler's personal data including name, address, user account information, trip records, and profile data.
personal location (Planned)
The current location (latitude, longitude, and elevation) reported by the personal information or safety device
request for payment (Planned)
Request to deduct cost of service from user's payment account.
transit user information (Planned)
Information about individual transit users boarding a transit vehicle, used to track a user's progress on a scheduled transit trip.
transit vehicle information (Planned)
Information about the transit vehicle route and stops, including current location along the route and next stop.
vehicle location and motion (Planned)
Data describing the vehicle's location in three dimensions, heading, speed, acceleration, braking status, and size.
